Lower Control Arm
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

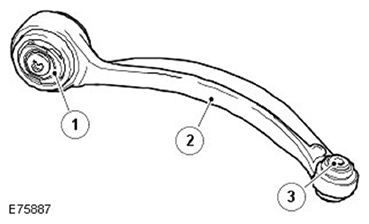

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hydrabush |
| 2 | Lower control arm |
| 3 | Spherical bearing |
The cast lower control arm is fitted with a hydrabush in its inner end which locates between brackets on the subframe. The arm is secured with an eccentric bolt, an eccentric washer and a locknut which allow for adjustment of the castor and camber geometry.
The outer end of the control arm is fitted with a spherical bearing and locates between the cast brackets on the lower lateral control arm. The lower lateral control arm and lower control arm together form a wishbone design.
