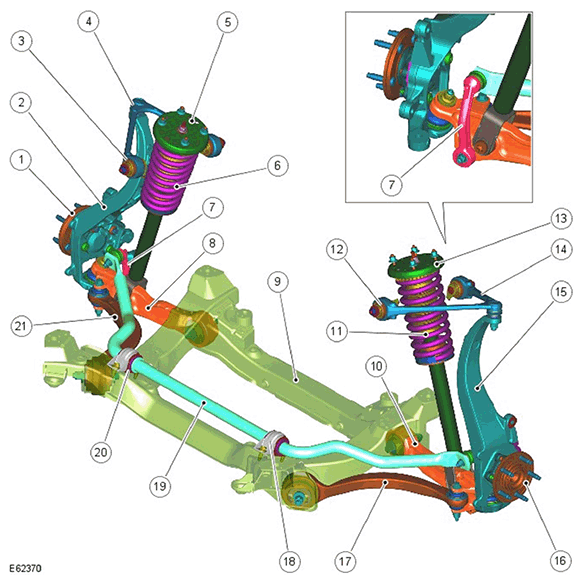

Component Location
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right Hand (RH) wheel hub and bearing assembly |
| 2 | RH wheel knuckle |
| 3 | Upper control arm bush (2 off) |
| 4 | RH upper control arm |
| 5 | RH top mount plate |
| 6 | RH spring and damper assembly |
| 7 | Stabilizer link |
| 8 | RH lower lateral control arm |
| 9 | Front subframe |
| 10 | Left Hand (LH) lower lateral control arm |
| 11 | LH spring and damper assembly |
| 12 | Upper control arm bush (2 off) |
| 13 | LH top mount plate |
| 14 | LH upper control arm |
| 15 | LH wheel knuckle |
| 16 | LH wheel hub and bearing assembly |
| 17 | LH lower control arm |
| 18 | Mounting bracket (2 off) |
| 19 | Stabilizer bar |
| 20 | Stabilizer bar bush (2 off) |
| 21 | RH lower control arm |
