Special Tool(S)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

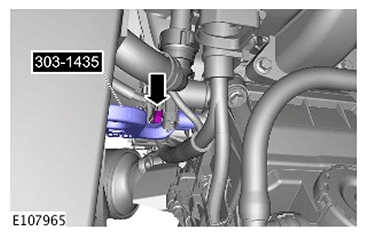

| 303-1435 Engine Lifting Brackets Rear |
-
CAUTION: Make sure that the torque converter remains in the transmission.NOTE: This step requires the aid of another technician.

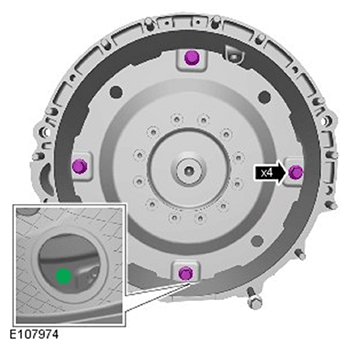

- Remove the torque converter retainer.
torque specification: 45 Nm
torque specification: 45 Nm
- Remove the support.
torque specification: 127 Nm
-
CAUTION: Only rotate the crankshaft clockwise.
Make sure that the alignment mark is visible through the inspection hole on installation of the first torque converter bolt.
torque specification: 45 Nm
torque specification: 10 Nm
torque specification: 48 Nm
torque specification: 6 Nm
torque specification: 40 Nm
- Remove the special tool supporting the engine.
Special Tool(s): 303-1435
- Refer to: Catalytic Converter (Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
- Refer to: Transmission Fluid Cooler Tubes (Transmission/Transaxle Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
- Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
