General Procedures: Check

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before disconnecting or removing components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • The vehicle battery must be in good condition and fully charged before carrying out this procedure.
  1. Refer to: Spark Plugs - V8 5.0L Petrol

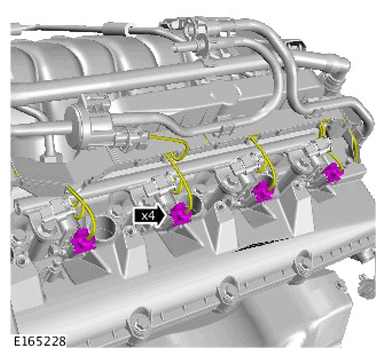

    2. CAUTION: Make sure the fuel injection system is disabled before carrying out a cylinder compression test. Failure to follow this step may result in damage to the vehicle.
  2. G11284757

    Repeat procedure for the other side.

  3. Crank engine for approximately five seconds to remove any remaining fuel in the cylinders.
    4. NOTE: Dry cylinder compression test.
  4. G11284758

    Install the compression test gauge.

    5. NOTE:
    • This step requires the aid of another technician.
    • Print graphic number E164747 in step  11. Use this graphic to record each cylinder compression figure.
    • The vehicle battery must be in good condition and fully charged before carrying out this procedure.

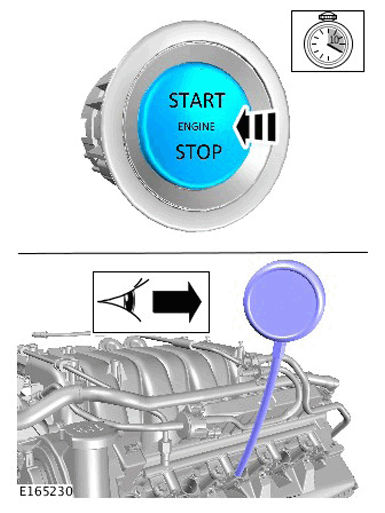

  5. G11284759

    Crank the engine for 10 seconds and record the figure displayed on the compression test gauge. Make sure the pressure is released from the compression test gauge after each cylinder recording. Repeat the process for all cylinders.

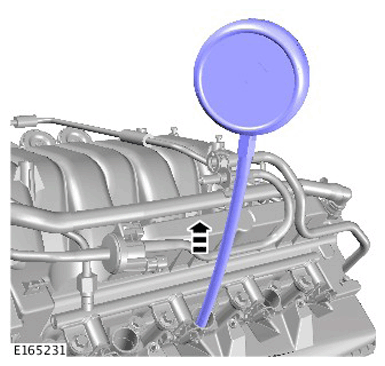

  6. G11284760

    Remove the compression test gauge.

    7. NOTE: Wet cylinder compression test.

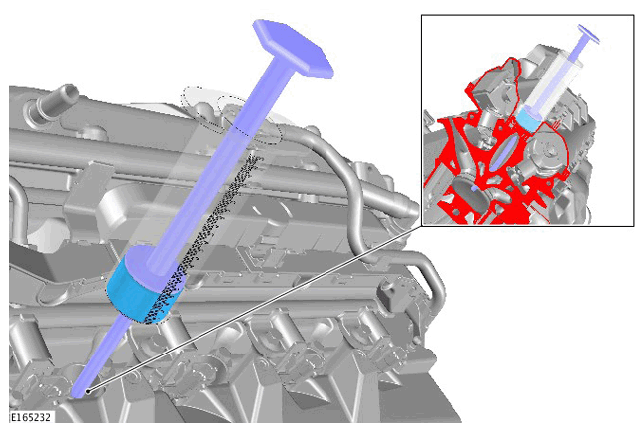

  7. G11284761

    Using a suitable syringe add 10 ml of clean engine oil into the cylinder.

  8. G11284758

    Install the compression test gauge.

    9. NOTE:
    • This step requires the aid of another technician.
    • Print graphic number E164747 in Step  11. Use this graphic to record each cylinder compression figure.
    • The vehicle battery must be in good condition and fully charged before carrying out this procedure.
  9. G11284759

    Crank the engine for 10 seconds and record the figure displayed on the compression test gauge. Make sure the pressure is released from the compression test gauge after each cylinder recording. Repeat the process for all cylinders.

  10. After each wet cylinder compression test remove the compression test gauge and crank engine for approximately 10 seconds to remove engine oil from the cylinder.
    11. NOTE:
    • A= dry cylinder compression test.
    • B= wet cylinder compression test.
  11. G11284756
    12. NOTE: Remove and discard all blanking caps.

  12. To install, reverse the removal procedure.

  13. The minimum cylinder compression reading recorded must be within 10% of the maximum cylinder compression reading recorded. If the difference across the cylinders is higher than 10% please contact dealer technical support (DTS) for further assistance.
  14. Using Jaguar approved diagnostic equipment, read and clear any diagnostic trouble codes (DTCs).
