General Procedures

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

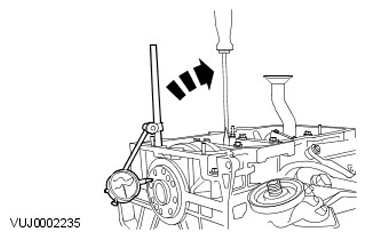

Using the Dial Indicator Gauge with Brackets, measure the end play.

Measure the end play by lifting the crankshaft using a lever.
If the value is out of the specification, install new thrust half rings to take up the end float and repeat the measurement.
