Removal And Installation: Materials: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Refer to: Wheel and Tire
    3. NOTE: With assistance, remove the halfshaft retaining nut, and retain it for the install procedure.

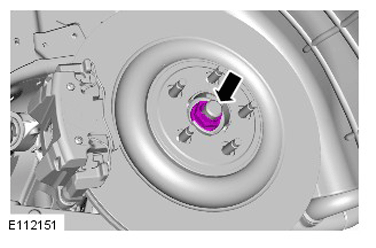

  3. G11283906
  4. G11283907
  5. G11283620
  6. G11283909
  7. G11283857

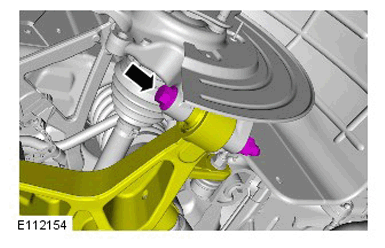

  8. G11283911
    9. CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

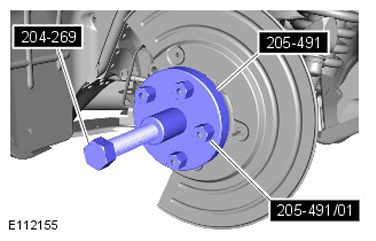

  9. G11283912

    Special Tool(s):  205-491-1, 205-491, 204-269

    10. NOTE: Use an additional wrench to prevent the component from rotating.

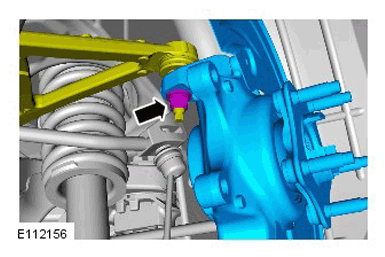

  10. G11283913

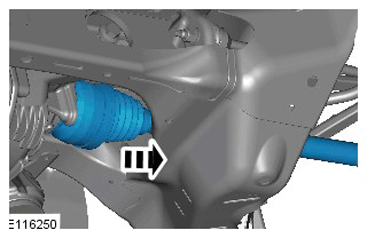

  11. G11284309
    12. NOTE: Component illustrated, removed for clarity.

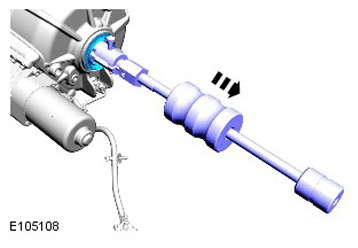

  12. G11284310

    Special Tool(s):  100-012, 308-005

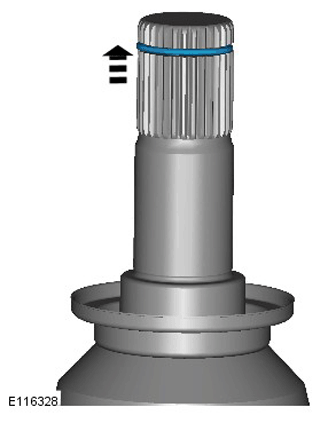

  13. G11284281
