Control Diagram - Electronic Differential

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

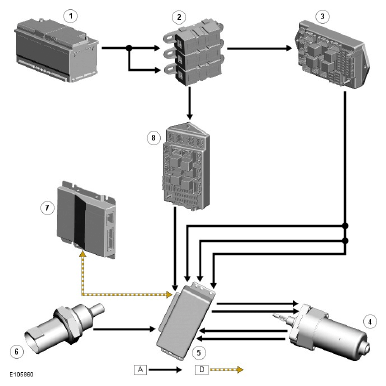

NOTE: A  = Hardwired; D  = High speed CAN bus
G11510923
ITEM DESCRIPTION
1 Battery
2 BJB (battery junction box) (2 x 175 A megafuses)
3 AJB (auxiliary junction box)
4 Motor
5 DLM
6 Oil temperature sensor
7 ADCM
8 CJB (central junction box)
