Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

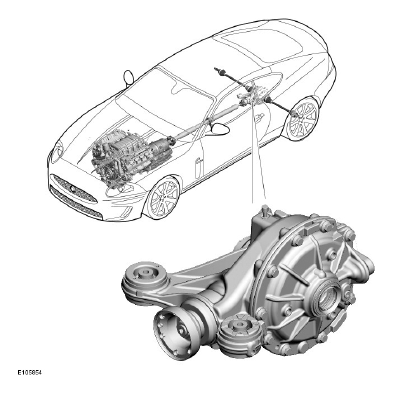

Open Differential

G11510916

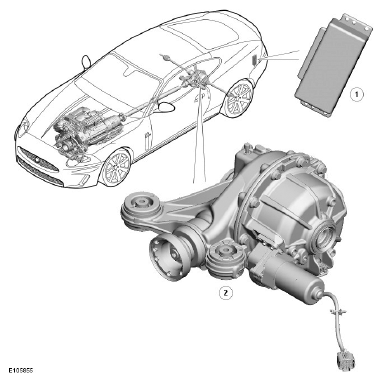

Electronic Differential

G11510917
ITEM DESCRIPTION
1 DLM (differential locking module)
2 Electronic differential
