Removal And Installation: Removal: Notes

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

  2. Drain the rear differential oil.

    Refer to: Differential Draining and Filling

  3. Remove the driveshaft.

    Refer to: Driveshaft

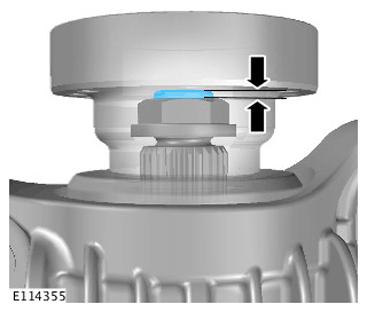

  4. G11284170

    Measure the depth of the differential pinion nut on the differential pinion shaft.

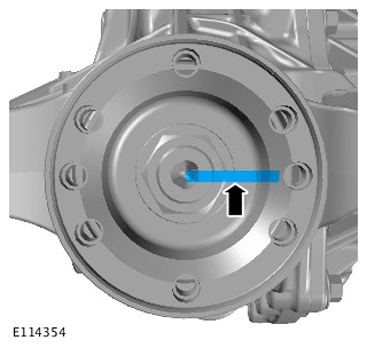

  5. G11284171

    Scribe a line to mark the differential pinion shaft to the differential pinion flange nut and the differential pinion flange.

    6. WARNING: This step requires the aid of another technician.
  6. G11284172
    1. Remove the differential pinion shaft nut.
    2. Special Tool(s):  205-053, 205-053-03

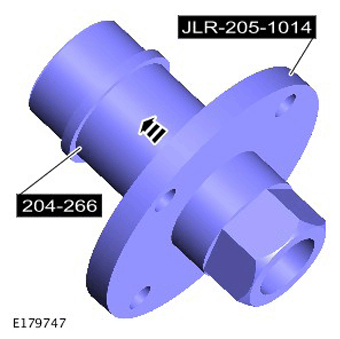

  7. G11284173

    Special Tool(s):  204-266, JLR-205-1014

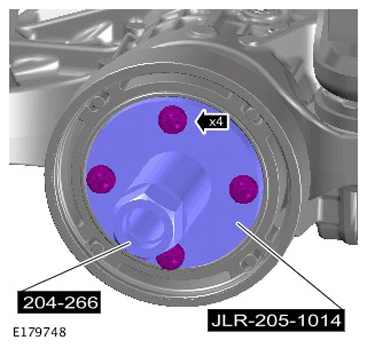

  8. G11284174

    Special Tool(s):  204-266, JLR-205-1014

    9. WARNING: This step requires the aid of another technician.

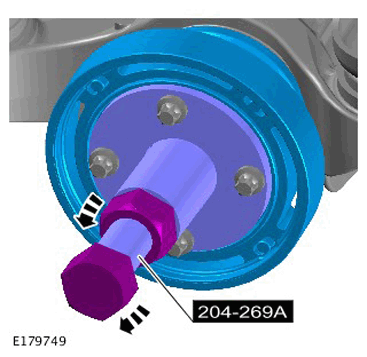

  9. G11284175

    Special Tool(s):  204-269A

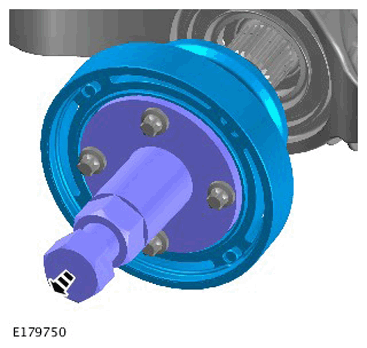

  10. G11284176

    Remove the differential pinion flange assembly.

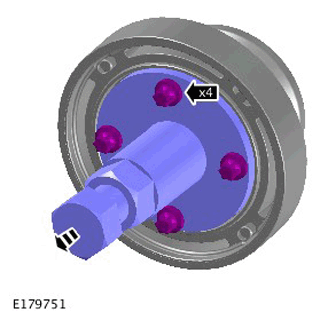

  11. G11284177

    Remove the special tools from the differential pinion flange.

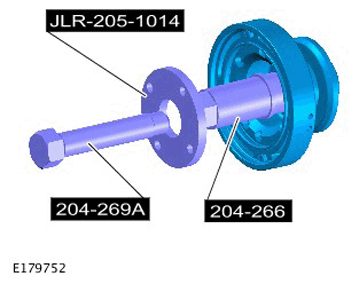

  12. G11284178

    Special Tool(s):  204-269A, 204-266, JLR-205-1014

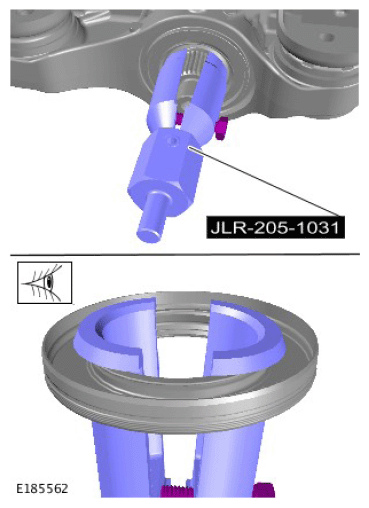

  13. G11294523
    1. Install the special tool to the differential pinion seal as shown.
    2. Special Tool(s):  JLR-205-1031

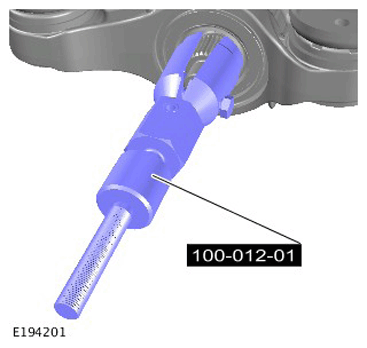

  14. G11284180

    Special Tool(s):  100-012-01

    15. WARNING: Be prepared to collect escaping oil.

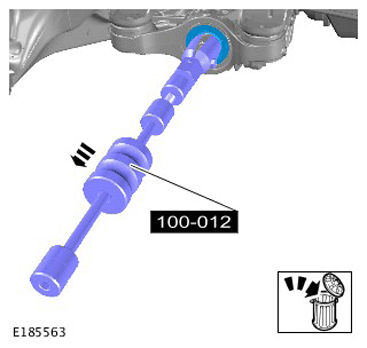

  15. G11284181
    1. Remove and discard the differential pinion seal.
    2. Special Tool(s):  100-012
    16. CAUTION: Take extra care not to contaminate the differential pinion shaft tail bearing.

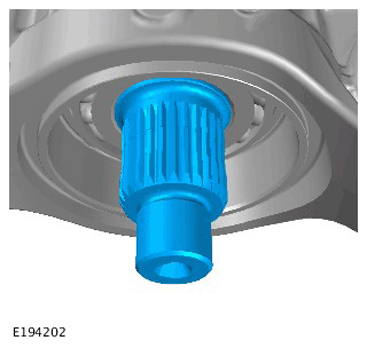

  16. G11284182

    Make sure the differential pinion shaft splines and threads are clean and free of Loctite.

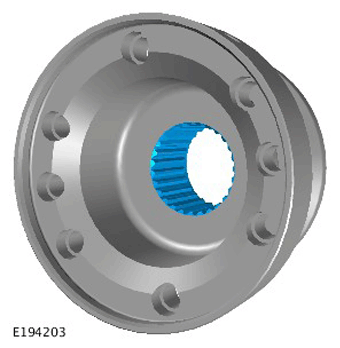

  17. G11284183

Make sure the differential pinion flange splines are clean and free of Loctite.
