Removal And Installation: Removal: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

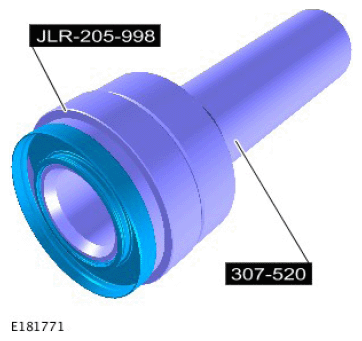

  1. G11294528
    1. Install the differential pinion seal to the special tool.
    2. Special Tool(s):  JLR-205-998, 307-520

      3. Renew Part: Differential pinion seal.

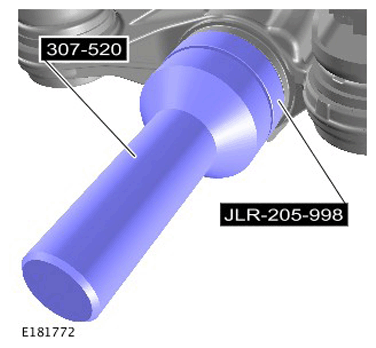

  2. G11284185
    1. Using the special tools, install the differential pinion seal until fully seated.
    2. Special Tool(s):  JLR-205-998, 307-520

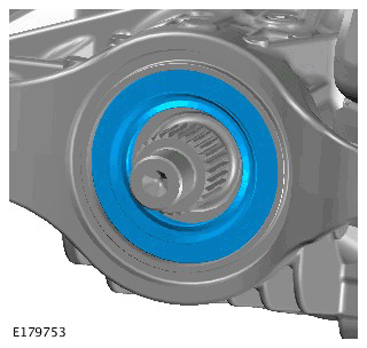

  3. G11284186

    Check the differential pinion seal is fully seated.

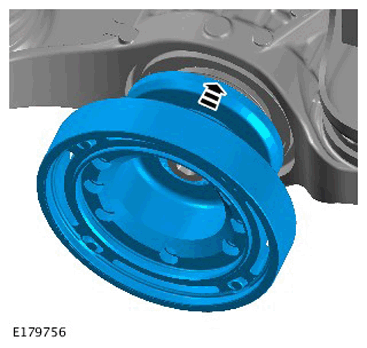

  4. G11284187

    Align the scribed line on the differential pinion flange to the differential pinion shaft.

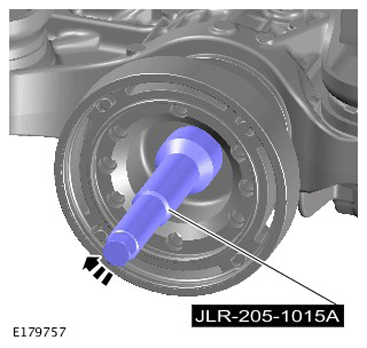

  5. G11284188

    Special Tool(s):  JLR-205-1015A

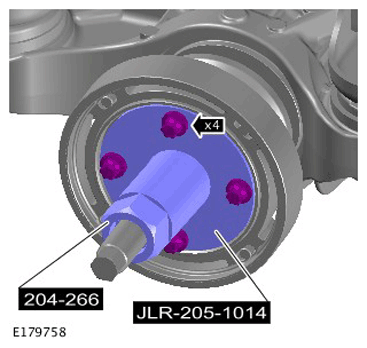

  6. G11284189

    Special Tool(s):  204-266, JLR-205-1014

    7. WARNING: This step requires the aid of another technician.

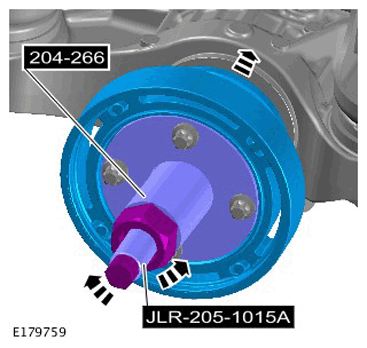

  7. G11284190
    1. Using the special tools, install the differential pinion flange.
    2. Special Tool(s):  204-266, JLR-205-1015A

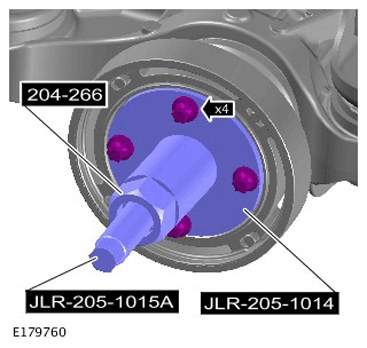

  8. G11284191

    Special Tool(s):  204-266, JLR-205-1015A, JLR-205-1014

    9. WARNING: This step requires the aid of another technician.
    CAUTION: Make sure the differential pinion flange has no end float and is free to rotate.
    • Make sure that the differential pinion flange nut scribed line is aligned and is never tightened short of the scribed mark on the differential pinion shaft.
    • Make sure that the differential pinion flange nut scribed line is aligned and tightened no more than a maximum of 5 degrees past the scribed mark on the differential pinion shaft.
  9. G11284172
    1. Apply Loctite to threads and splines.
    2. Using the special tool 205-053, counter hold the differential pinion flange and install the differential pinion nut.

    3. Measure the depth of the differential pinion nut on the differential pinion shaft to previous noted depth.

    4. Special Tool(s):  205-053, 205-053-03
  10. Install the driveshaft.

    Refer to: Driveshaft

  11. Carry out the rear differential filling procedure.

Refer to: Differential Draining and Filling
