Special Tool(S): Notes

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
G00566812
 205-053
Flange holding tool
G11291636
 204-264
Pinion seal installer

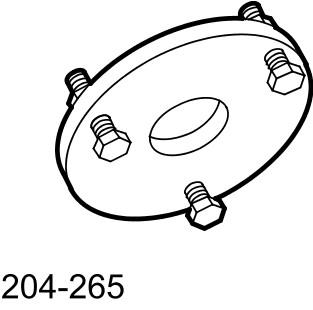

GJ0004983
 204265
Flange remover/replacer

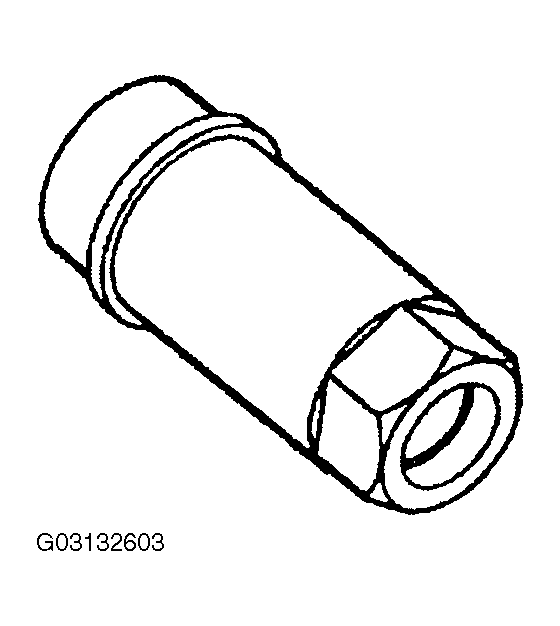

G03132603
 204-266
Flange remover/replacer boss

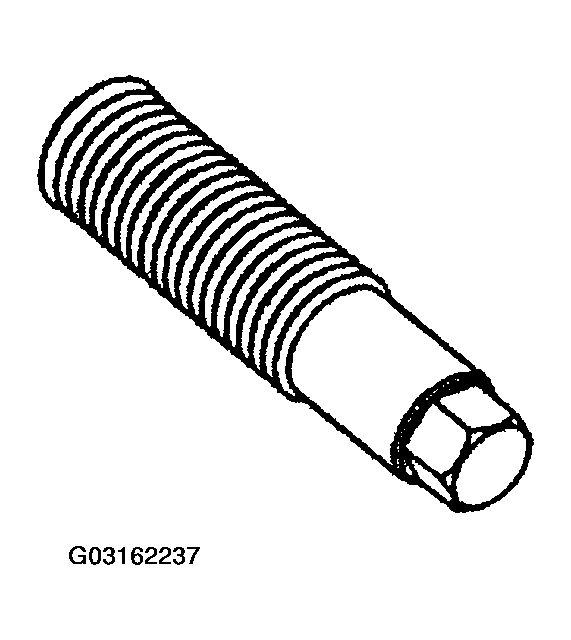

G03162237
 204-267
Flange remover/replacer shaft centre

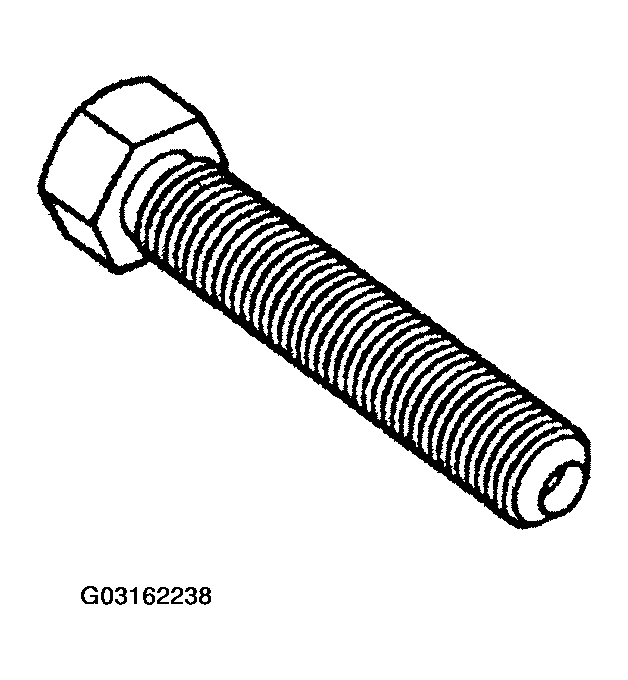

G03162238
 204-269
Flange remover/replacer forcing screw
