Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. G11284157

    Torque Specification: 11 Nm

    2. CAUTION:
    • Make Sure That The Mating Faces Are Clean And Free Of Foreign Material.
    • Apply A Continuous Bead Of Silicone Gasket Sealant (Loctite 5999) As Shown On The Illustration. The Application Of The Sealant Must Be 4Mm Diameter. Install The Component Immediately After Applying The Sealant Without Smearing The Sealant.
    NOTE: New Units Must Be Configured Using The Programmable Module Installation Routine In The Diagnostic Tool.

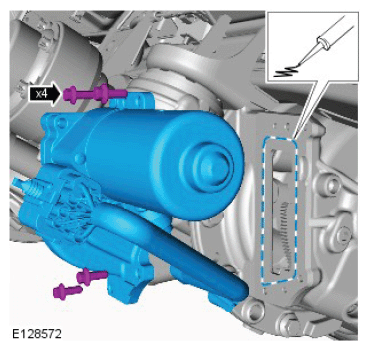

  2. G11294502
    • Torque Specification: 11 Nm
    • Apply A Suitable Amount Of Approved Sealant To One Of The Mating Faces.
  3. G11510967
  4. G11510944

    Torque Specification: 7 Nm

  5. NOTE: Some Variation In The Illustrations May Occur, But The Essential Information Is Always Correct.
    G11510965
  6. CAUTION: Take Extra Care When Handling The Component.
    G11510964
  7. G11510963
    • Torque Specification: 25 Nm
  8. G11510962

    Torque Specification: 25 Nm

  9. Refer To: differential Draining And Filling
