Special Tool(S): Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Refer to: Differential Case - 5.0L/3.0L

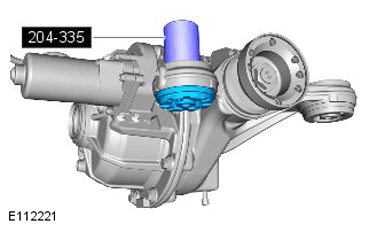

  3. G11284153

Special Tool(s):  204-335
