Special Tool(S): Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Make sure the new bushes are installed in the correct orientation.

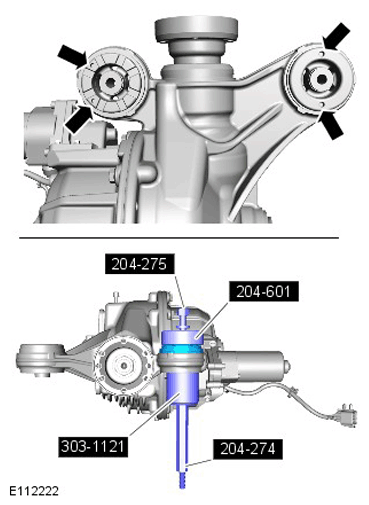

  1. G11284154

    Special Tool(s):  204-275, 204-601, 303-1121, 204-274

  2. Refer to: Differential Case - 5.0L/3.0L
