General Procedures: Part(S): Check

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Specifications
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

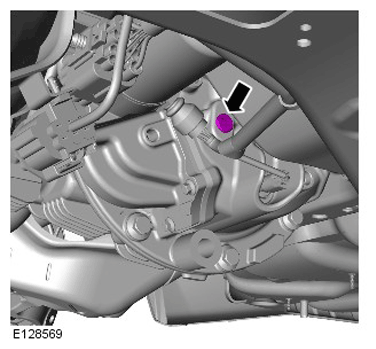

- Clean the area around the lubricant filler plug.
- Position container to collect fluid loss.

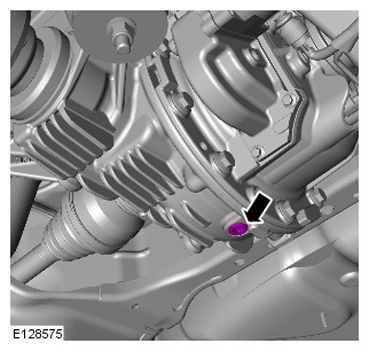

- Clean the area around the drain plug.
- Remove the fluid drain plug.
- Drain the differential lubricant.
ADJUSTMENT
- Clean the drain plug.
- Torque Specification: 27 Nm

CAUTION:

Do not fill the differential with lubricant up to the filler plug. The filler plug is only used to fill the differential with lubricant, and not to act as a level indicator.
Make sure the correct specification and quantity of oil is used.

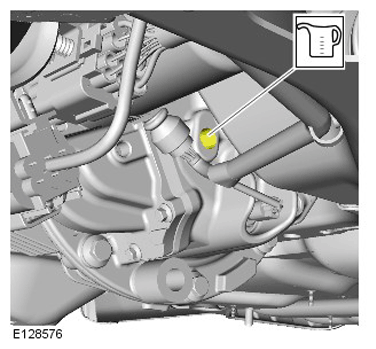

- Fill the differential with the correct amount of lubricant.
- Install a new differential fluid drain plug
  Renew Part: Rear differential drain plug.
- Torque Specification: 27 Nm
