Special Tool(S): Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
Raise and support the vehicle.
- Refer to: Rear Halfshaft - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133
- Refer to: Exhaust System

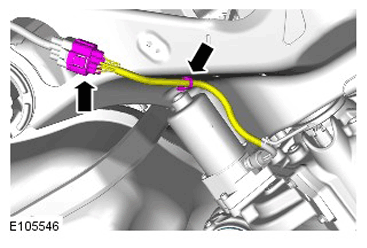

Torque Specification: 7 Nm
Torque Specification: 10 Nm
- K-Frame bolts
Torque Specifications:
M10 40 Nm
M12 133 Nm
- Subframe bolts
Torque Specifications
Stage 1: 60 Nm
Stage 2: 240°
- K-Frame bolts
Torque Specification: 75 Nm

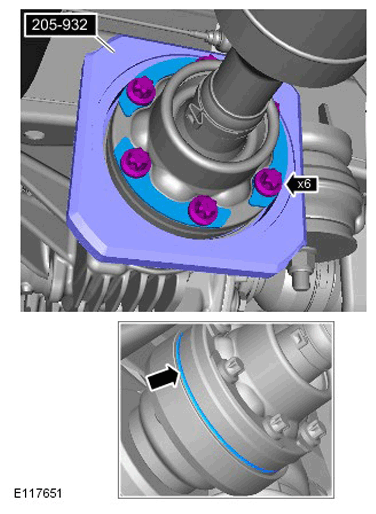

Special Tool(s): 205-932
Vehicles with supercharger
All vehicles
- Support the rear differential casing.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
WARNING:
Make sure the axle assembly is supported.
CAUTION:
To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
NOTE:

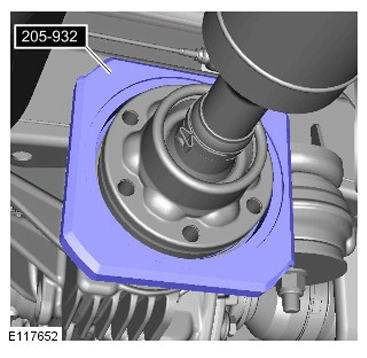

Make sure that the special tool is correctly installed to the recess on the driveshaft.
CAUTION:
To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
NOTE:
Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
Torque Specifications
M14 190 Nm
M12 90 Nm
