Removal And Installation: Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Select NEUTRAL before disconnecting the battery, to allow the driveshaft to be turned.
- Refer to: Battery Disconnect and Connect
-
Raise and support the vehicle.

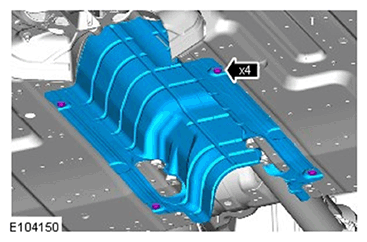

- Refer to: Exhaust System
Special Tool(s): 205-932
Special Tool(s): 205-932
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
CAUTION:
Under no circumstances must the flexible coupling (or it's fixings) be loosened or removed from the driveshaft.
CAUTION:
To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
NOTE:
Make sure that the special tool is correctly installed to the recess on the driveshaft.
CAUTION:
To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
NOTE:
Using a suitable hammer and drift, make sure that you only hit the corner edges of the special tool to remove the driveshaft.
