Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Only tighten the bolts finger-tight at this stage.
  1. G11284060
    2. NOTE: Make sure that the alignment mark on the driveshaft is correctly aligned to the alignment mark on the differential case.

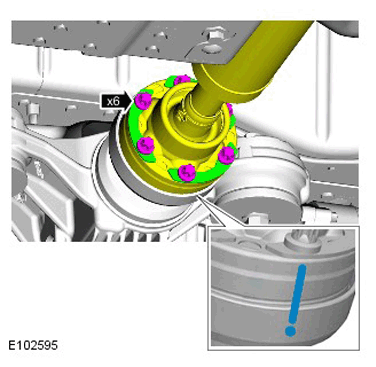

  2. G11284062

    Torque Specification: 75 Nm

    3. NOTE:
    • This step only applies if a new driveshaft is being installed.
    • Using the 3mm hole on the differential case flange and paint alignment mark on the driveshaft (as indicated). Make sure that the alignment marks are correctly aligned.
  3. G11284063

    Torque Specification: 75 Nm

    4. CAUTION: Under no circumstances must the flexible coupling (or it's fixings) be loosened or removed from the driveshaft.
  4. G11291674

    Torque Specification: 127 Nm

  5. G11284060

    Torque Specification: 40 Nm

  6. G11504306

    Torque Specification: 5 Nm

  7. G11510944

    Torque Specification: 7 Nm

  8. G11504304

    Torque Specification: 10 Nm

  9. Refer to: Exhaust System
    10. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  10. Lower the vehicle.

  11. Refer to: Battery Disconnect and Connect
