Component Location: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

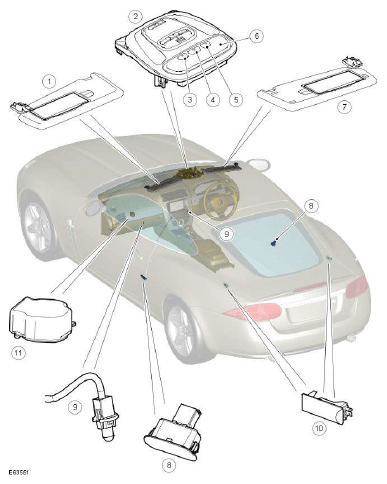

| ITEM | DESCRIPTION |
|---|---|
| 1 | Left Hand (LH) vanity mirror |
| 2 | Overhead console (Coupe version shown) |
| 3 | LH map reading lamp switch |
| 4 | Interior lamp switch |
| 5 | Right Hand (RH) map reading lamp switch |
| 6 | Map and interior lamps |
| 7 | RH vanity mirror |
| 8 | LH and RH door puddle lamps |
| 9 | LH and RH footwell lamps |
| 10 | LH and RH luggage compartment lamps |
| 11 | Glovebox lamp |
