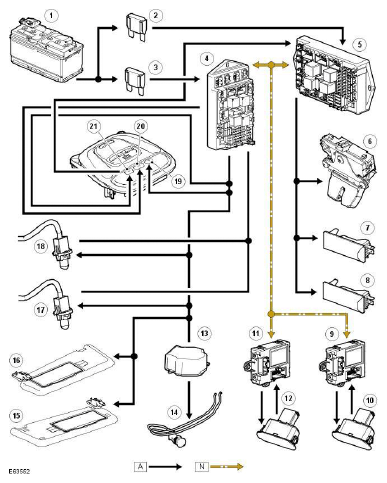

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; N = Medium speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Megafuse (175A) |
| 4 | CJB |
| 5 | Auxiliary junction box |
| 6 | Liftgate latch switch |
| 7 | Luggage compartment lamp |
| 8 | Luggage compartment lamp |
| 9 | Passenger door module |
| 10 | Passenger door puddle lamp |
| 11 | Driver's door module |
| 12 | Driver's door puddle lamp |
| 13 | Glovebox lamp switch |
| 14 | Glovebox lamp |
| 15 | Driver's vanity mirror |
| 16 | Passenger vanity mirror |
| 17 | Driver's footwell lamp |
| 18 | Passenger footwell lamp |
| 19 | Driver's map reading lamp |
| 20 | Interior lamp |
| 21 | Passenger map reading lamp |
