Removal And Installation: Installation
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
- Install the parking aid sensor.
- Carefully secure the clips.
- Connect the electrical connector.
- Repeat the above procedure for the remaining 3 sensors.
- Install the rear bumper cover.
For additional information, refer to: Rear Bumper Cover
CAUTION:

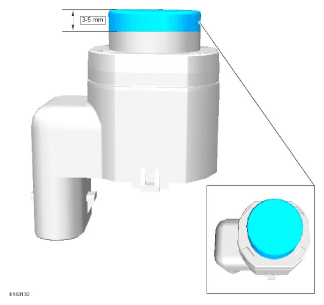

If a new sensor is installed, make sure that the area illustrated is the only
area painted. Failure to follow this instruction may result in the component malfunctioning.
NOTE:
On vehicles that are equipped with black or unpainted bumpers, the sensor(s) do not require painting.
