Control Module: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

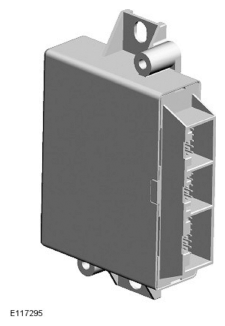

The parking aid control module is located in the front passenger footwell, behind a protective panel. The control module uses a single microprocessor to perform the following tasks:
- Control of the ultrasonic sensors
- Monitoring of the sensors
- Evaluation of received echo signals from the sensors
- Noise and disturbance suppression
- Control of the audio system speakers
- Control and monitoring of the switch status LED (light emitting diode) and associated wiring
- Evaluation and monitoring of the control inputs
- Management of diagnostic and test functions
- Monitoring of power supply
- Communication via diagnostic link.
The control module is connected to the vehicle electrical system by three multipin connectors.
