Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The park control module is situated in the LH footwell and does not change position with the hand of drive.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect And Connect

  2. See Figure
    G11516002

    LH side: Remove the cowl side trim panel.

    • Remove the Torx screw.
    • Remove the hood release lever.
    • Release the forward edge of the scuff plate trim panel.
    • Carefully release the clips.
    3. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during the carpet release.
  3. See Figure
    G11516003

    Carefully release the carpet for access.

    • Carefully release the forward edge of the floor console side trim panel.
  4. See Figure
    G11516004

    Release the subwoofer cover.

    • Remove the 4 bolts.
    • Position aside.

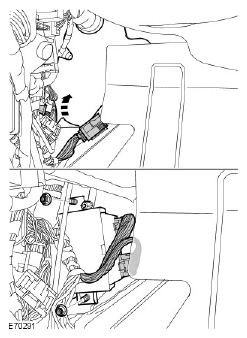

  5. See Figure
    G11516005

    Remove the parking aid module.

    • Position the acoustic pad aside.
    • Release 2 electrical harness clips from the body and position aside.
    • Remove the 2 nuts.
    • Disconnect the 2 electrical connectors.
