Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

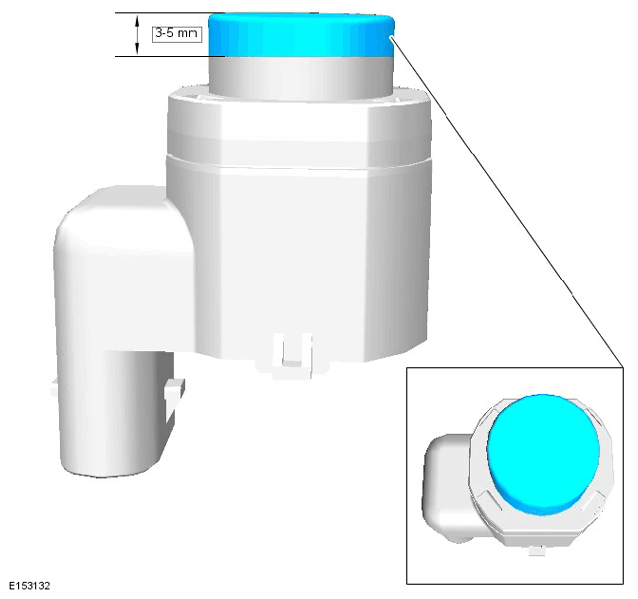

    CAUTION: If a new sensor is installed, make sure that the area illustrated is the only  area painted. Failure to follow this instruction may result in the component malfunctioning.
    NOTE: On vehicles that are equipped with black or unpainted bumpers, the sensor(s) do not require painting.
  1. See Figure
    G11293913
  2. To install, reverse the removal procedure.
