Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always protect paintwork and glass when removing exterior components.

Open the hood.

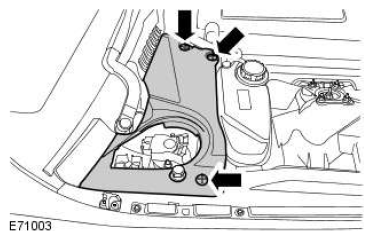

Remove the RH air intake cover.
- Remove the 3 clips.

CAUTION: Wipers arms do not lock in the upright position. Windshield damage may occur if the wiper pivot arms are allowed to drop against the glass.

NOTE: RH illustration shown, LH is similar

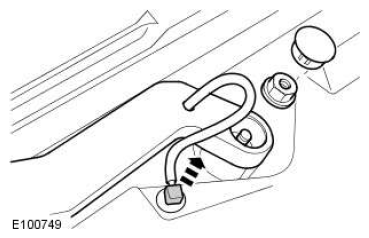

Remove the windshield wiper arms.
- Remove the 2 access plugs.
- Remove the 2 nuts.
- Disconnect the 2 washer jet blocks from the cowl vent screen.

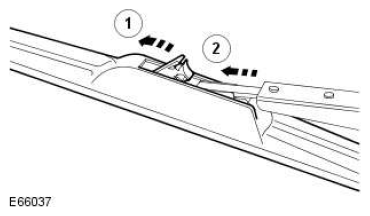

Remove the wiper blades.
- Release the 2 clips.
