Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper blades.
    • Position the locating clip in the upright position.
    • Position the blade at the end of the arm.
    • Secure the clip.
    • Repeat for the other side
    2. CAUTION: Incorrect fitting of the wiper pivot arms will result in damage to the bonnet on closure.
    NOTE:

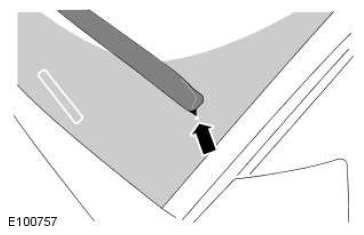

    • Align the wiper with the mark on the windscreen.
    • LH illustration shown, RH is similar.
  2. G11524556

    Install the windshield wiper arm.

    • Make sure the spindle is free from contamination.
    • Apply gentle pressure on the pivot arm hinge to make sure the pivot arm is located evenly.
    • Lightly tighten the nut.
    • Align the tip of the wiper blade with the mark on the windshield.
    • Tighten the nut to 23 Nm (17 lb.ft).
    • Install the covers.
    • Connect the washer jet hose block.
    • Repeat for the other side.
  3. Install the RH air intake cover.
