Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect And Connect

    2. WARNING: Do not work on or near the engine if the engine is hot. Failure to follow these instructions may result in personal injury.

  2. Remove the cowl vent screen.

    For additional information, refer to: Cowl Vent Screen

  3. Remove the engine cover.
    4. CAUTION: Care must be taken whilst removing the engine compartment bolts. Failure to follow this instruction may result in damage to the A/C pipes.
    NOTE: Right-hand shown, left-hand similar.

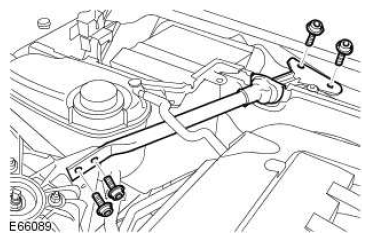

  4. G11524539

    Remove the engine compartment braces.

    • Release the grommet.
    • Remove the 4 Torx bolts.
    • Repeat the above procedure for the other side.

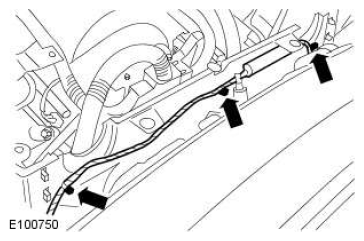

  5. G11524540

    Detach the wiring harness.

    • Release the 3 clips.

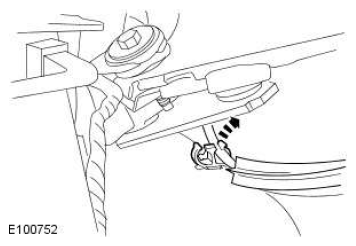

  6. G11524541

    Using a suitable tool, remove the hood release cable clip.

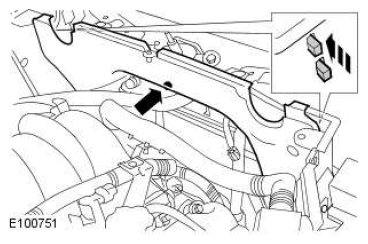

  7. G11524542

    Remove the secondary bulkhead center panel.

    • Remove the nut.
    • Release the 4 clips.

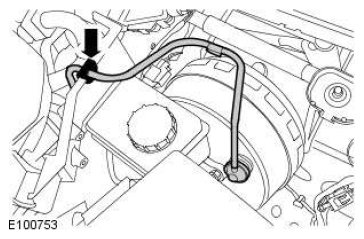

  8. G11524543

    Release the brake booster vacuum hose.

    • Release the grommet.

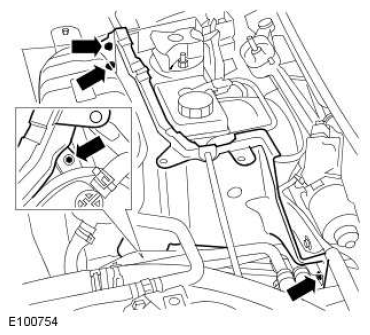

  9. G11524544

    Release the secondary bulkhead RH panel.

    • Remove the air conditioning (A/C) pipe bracket bolt.
    • Remove the coolant expansion tank mounting bracket bolt.
    • Remove the remaining 2 bolts.

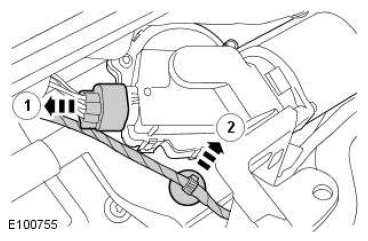

  10. G11524545

    Disconnect the windshield wiper motor electrical connector.

    • Detach the wiring harness clip.

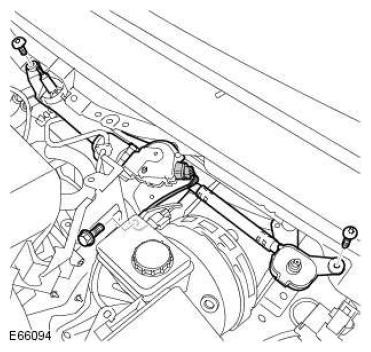

  11. G11524546

    Remove the windshield wiper motor and linkage mechanism.

    • Remove the 3 bolts.

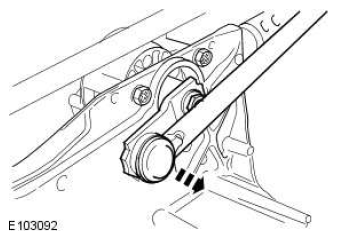

  12. G11524547

    Disconnect the connecting rod.

    13. NOTE: Note the original position of the windshield wiper motor crank arm.

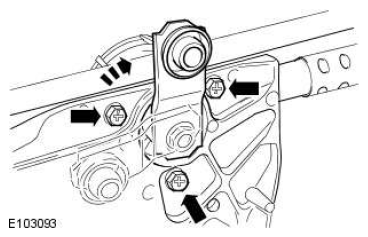

  13. G11524548

    Remove the windshield wiper motor.

    • Rotate the windshield wiper motor crank arm 90 degrees clockwise.
    • Remove the 3 bolts.
