Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

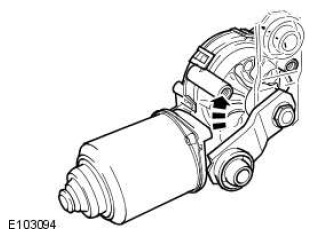

NOTE: Note the original position of the windshield wiper motor crank arm.

Rotate the windshield wiper motor crank arm 90 degrees clockwise.

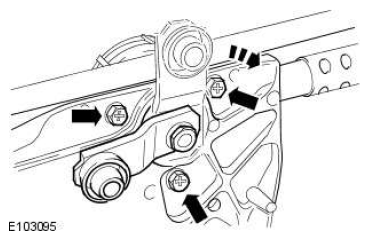

Install the windshield wiper motor.
- Tighten the 3 bolts to 5 Nm.
- Rotate the windshield wiper motor crank arm 270 degrees clockwise to the original position.
Fig 1: Windshield Wiper Motor And Linkage Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the windshield wiper motor and linkage mechanism.
- Loosely install the 3 bolts.
- Tighten bolt 1 to 9 Nm.
- Tighten bolt 2 to 9 Nm.
- Tighten bolt 3 to 9 Nm.
- Connect and secure the electrical connector.
Install the secondary bulkhead RH panel.
- Tighten the 4 bolts to 4 Nm.
Install the secondary bulkhead center panel.
- Attach the hood release cable clip.
- Attach the 3 wiring harness clips.
- Secure the 4 clips.
- Tighten the nut to 4 Nm.
Position the brake booster vacuum hose to one side.
- Position and secure the grommet.
Install the engine compartment braces.
- Tighten the Torx bolts to 55 Nm.
- Install the grommet.
- Repeat the above procedure for the other side.
Install the engine cover. Refer to: Engine Cover
Connect the battery ground cable and install the cover.
For additional information, refer to: Battery Disconnect And Connect
Carry out the windshield wiper motor park operation.
- Switch the ignition on.
- Turn on the windshield wipers and make sure that the
- wiper spindles perform a full cycle.
- Turn off the windshield wipers.
- Switch the ignition off.
Install the cowl vent screen.
For additional information, refer to: Cowl Vent Screen
