Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some fluid spillage is inevitable during this operation.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Remove the RH fender splash shield.

    For additional information, refer to: Fender Splash Shield

  3. G11524535

    Remove the windshield washer reservoir filler neck.

    • Release the clip.

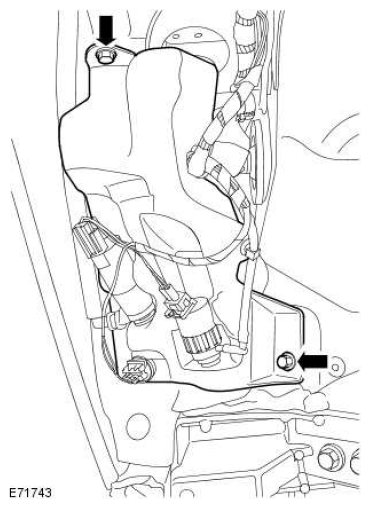

  4. G11524536

    Release the washer reservoir.

    • Remove the 2 bolts.
    5. NOTE: Note the fitted position.

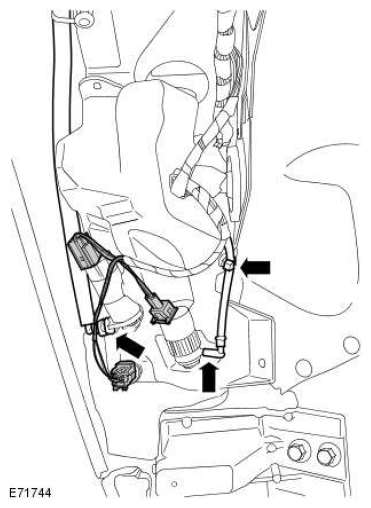

  5. G11524537

    Remove the windshield washer reservoir.

    • Position a container to collect spillage.
    • Disconnect the 3 electrical connectors.
    • Carefully release the clip.
    • Disconnect the 2 washer jet hoses.
    6. NOTE: Do not disassemble further if the component is removed for access only.

  6. Remove the washer reservoir low level sensor.

    • Remove and discard the seal.
  7. Remove the headlamp washer pump.
    • Remove and discard the seal.
  8. Remove the windshield washer pump.
    • Remove and discard the seal.
  9. Remove the filler neck seal.

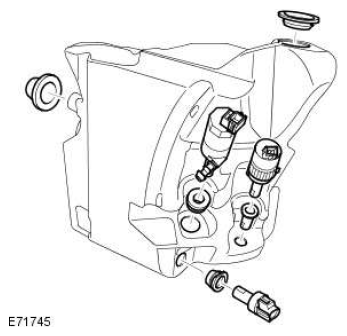

  10. G11524538

    Remove the rubber mount.
