Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Remove the RH fender splash shield.

    For additional information, refer to: Fender Splash Shield

  3. Drain the washer reservoir fluid.
    • Position a container to collect the fluid.

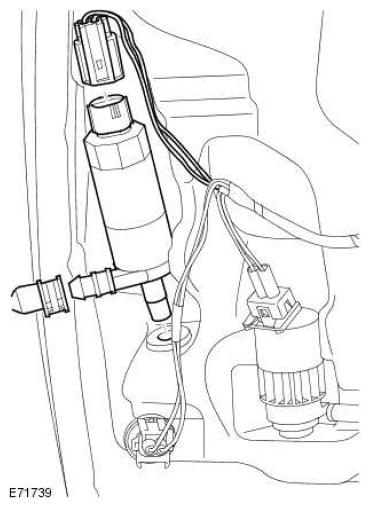

  4. G11524526

    Remove the headlamp washer pump.

    • Disconnect the washer jet hose.
    • Disconnect the electrical connector.

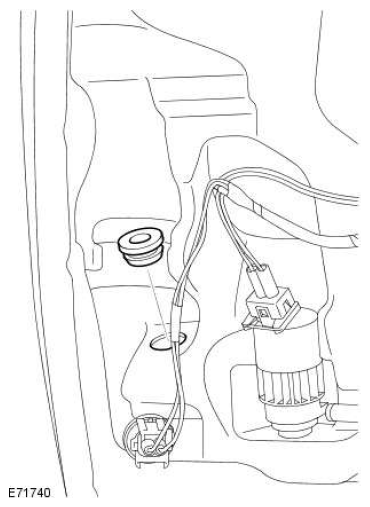

  5. G11524527

    Remove and discard the seal.
