Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Vehicles fitted with Xenon headlamps, the following precautions must be observed. Failure to comply may result in exposure to ultra violet rays, severe electric shock, burns or the risk of explosion. Ensure the headlamps are switched off at all times. Eye and hand protection must be worn. Never switch on the lamps or test the bulbs with the lamp holder released from the headlamp.
  1. Disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect And Connect

  2. Open the hood.
    3. CAUTION: Always protect paintwork and glass when removing exterior components.

  3. Release the headlamp assembly.

    • Remove the 3 bolts.
    • Release the locating pegs.

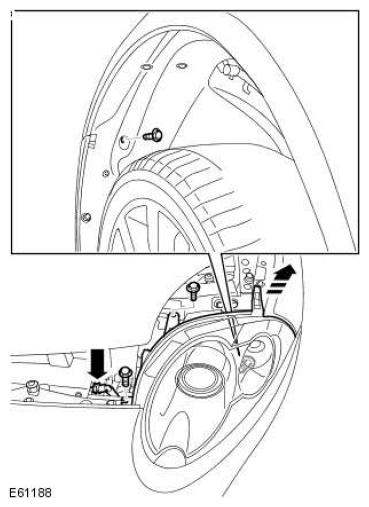

  4. G11524522

    Disconnect the washer jet hose.

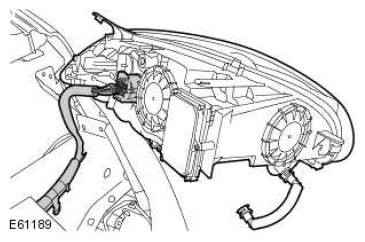

  5. G11524523

    Remove the LH headlamp assembly.

    • Disconnect the electrical connector.

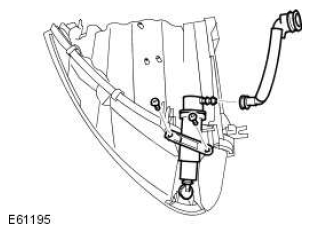

  6. G11524524

    Remove the headlamp washer jet.

    • Disconnect the washer jet hose.
    • Remove the 2 Torx screws.
