Wiper Control Column Switch
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

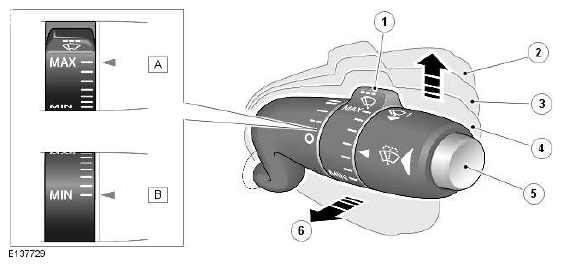

| ITEM | DESCRIPTION |
|---|---|
| A | Rain sensor maximum sensitivity |
| B | Rain sensor minimum sensitivity |
| 1 | Rain sensor sensitivity |
| 2 | Fast speed wipe |
| 3 | Normal speed wipe |
| 4 | Rain sensor activated wipe |
| 5 | Windshield washer |
| 6 | Single wipe |
The wiper control column switch is located on the RH side of the steering column and controls all wiper functions. The wipers only operate with the ignition on.
The switch comprises 5 switch positions (including off), a rain sensor sensitivity switch and a windshield washer switch. The switch positions each complete a combination of ground paths to connections on the CJB.
The CJB interprets the selected combination of switches and operates the respective function accordingly.
