Headlamp Washers
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

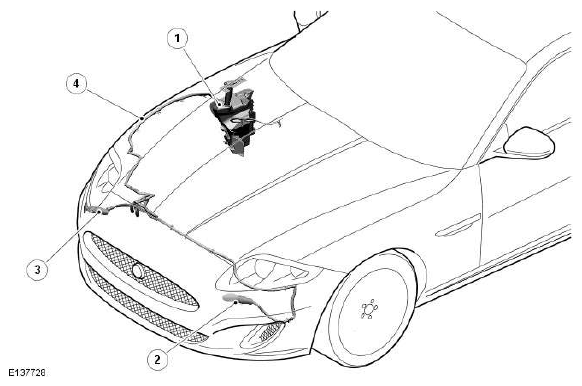

| ITEM |
DESCRIPTION |
| 1 |
Reservoir |
| 2 |
LH headlamp washer jet |
| 3 |
RH headlamp washer jet |
| 4 |
Washer fluid tube |
A telescopic washer assembly is located below each headlamp.
The headlamp washer operation is controlled by the CJB via a headlamp washer relay. The relay is located in the power distribution box.
