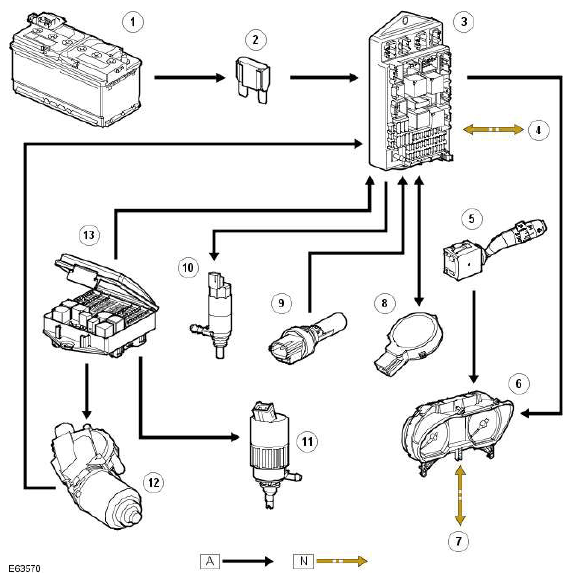

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; N
= Medium Speed CAN bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | CJB |
| 4 | CAN input and output signals to and from various other vehicle systems |
| 5 | Column switch |
| 6 | Instrument cluster |
| 7 | CAN input and output signals to and from various other vehicle systems |
| 8 | Rain sensor |
| 9 | Reservoir fluid level sensor |
| 10 | Windshield washer pump |
| 11 | Headlamp washer pump |
| 12 | Wiper motor |
| 13 | Power distribution box |
