Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

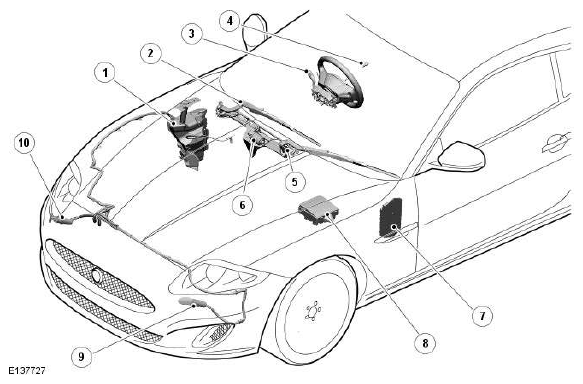

G11524513
ITEM DESCRIPTION
1 Washer reservoir
2 Wiper arms/blades (2 off)
3 Wiper/washer control switch
4 Rain sensor
5 Wiper arm mounting spindles (2 off)
6 Wiper motor
7 CJB (central junction box)
8 Power distribution box
9 LH headlamp power wash jet
10 RH headlamp power wash jet
