Control Diagram - Private Can Bus

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: U = Private CAN bus.

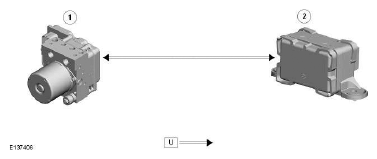

G11523901
ITEM DESCRIPTION
1 ABS module
2 Yaw rate/acceleration sensor
