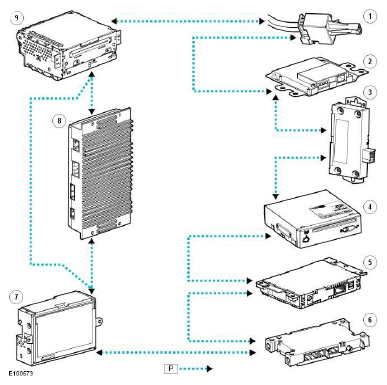

Control Diagram - Most Ring

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: P = MOST ring.
G11523900
ITEM DESCRIPTION
1 Software download socket
2 Information and entertainment module
3 Auxiliary USB (universal serial bus) unit
4 Multi - media module
5 DAB/SDARS receiver
6 Cellular phone module
7 TSD (touch screen display)
8 Audio system amplifier
9 Integrated audio module
