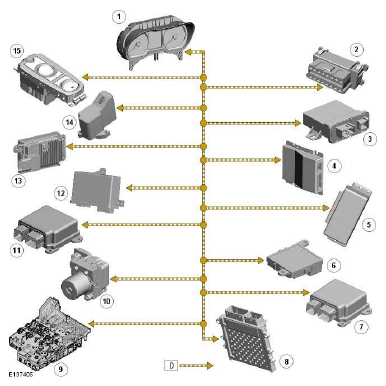

Control Diagram - High Speed Can Bus
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
D = High speed CAN bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument cluster |
| 2 | Diagnostic socket |
| 3 | Headlamp leveling/AFS (adaptive front lighting system) control module |
| 4 | ADCM (adaptive damping control module) |
| 5 | DLM (differential locking module) |
| 6 | Occupancy sensor module |
| 7 | Pedestrian protection module |
| 8 | ECM (engine control module) |
| 9 | ATC (transmission control module) |
| 10 | ABS (anti - lock brake system) module |
| 11 | RCM (restraints control module) |
| 12 | Parking brake module |
| 13 | Adaptive speed control radar sensor |
| 14 | Electric steering column lock |
| 15 | JaguarDrive selector module |
