Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: Wheel and Tire (Removal and Installation).
  3. CAUTION: Make sure that the harness retaining bracket is not removed. Failure to follow this instruction may result in damage to the harness.
    NOTE: Note the orientation of the clip.
    G11512120

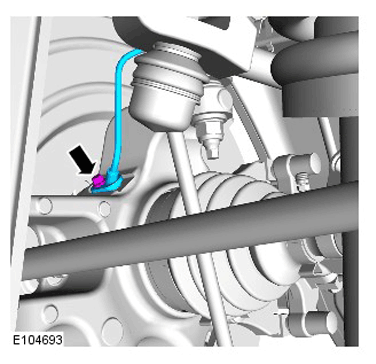

  4. CAUTION: Note the fitted position of the component prior to removal.
    G11283909

    Torque specification  : 6 Nm
