Wheel Speed Sensors

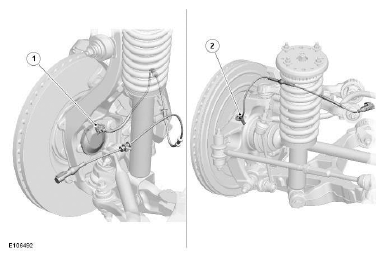

An active wheel speed sensor is installed in each wheel hub to provide the ABS module with a rotational speed signal from each road wheel. The head of each front wheel speed sensor is positioned close to a magnetic encoder ring incorporated into the inboard seal of the wheel bearing. The head of each rear wheel speed sensor is positioned close to a magnetic encoder ring incorporated into the rear wheel bearing assembly. Each encoder ring contains 46 north and south poles. A fly lead connects each sensor to the vehicle harness.

The wheel speed sensors each have a signal and a return connection with the ABS module. When the ignition is ON the ABS module supplies a signal feed to the wheel speed sensors and monitors the return signals. Any rotation of the road wheels induces current fluctuations in the return signals, which are converted into individual wheel speeds and overall vehicle speed by the ABS module.

The ABS module broadcasts the individual wheel speeds and the vehicle speed on the high speed CAN bus for use by other systems.

If a wheel speed sensor fault is detected by the ABS module, 'ABS FAULT' will be displayed in the instrument cluster message center and an amber warning indicator will illuminate.
