STOPLAMP Switch
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

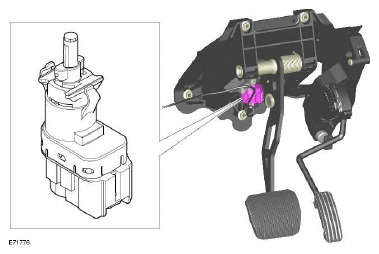

The stoplamp switch is mounted on the brake pedal box and is connected to the vehicle harness via a four pin multiplug.
When the brake pedal is pressed, the switch contacts close. This allows a hard wired signal feed to be sent to the ECM. A stoplamp switch status message is then sent from the ECM to the ABS module on the high speed CAN bus. The ABS module is then able to control braking force accordingly in conjunction with the HCU.
NOTE:
The stoplamp switch also forms part of the speed control system.
