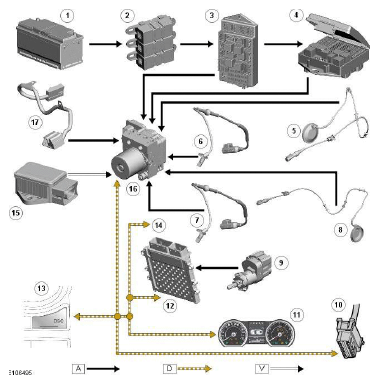

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed CAN bus; V
= Private CAN bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | BJB (battery junction box) (175A megafuse) |
| 3 | CJB (central junction box |
| 4 | Power distribution box |
| 5 | LH front wheel speed sensor |
| 6 | LH rear wheel speed sensor |
| 7 | RH rear wheel speed sensor |
| 8 | RH front wheel speed sensor |
| 9 | Stoplamp switch |
