Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

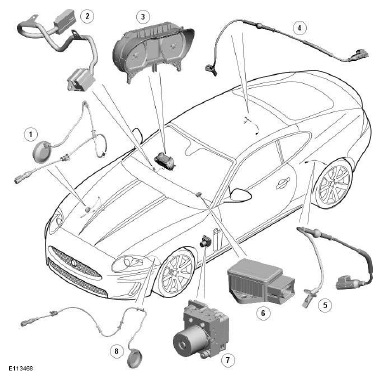

G11512098
ITEM DESCRIPTION
1 RH (right hand) front wheel speed sensor
2 Steering angle sensor
3 Instrument cluster
4 RH rear wheel speed sensor
5 LH (left hand) rear wheel speed sensor
6 Yaw rate and lateral acceleration sensor
7 ABS (anti-lock brake system) module
8 LH front wheel speed sensor
