Brake Warning Indicators
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

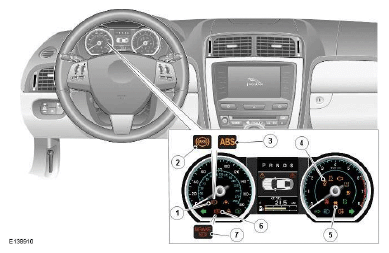

| ITEM | DESCRIPTION |
|---|---|
| 1 | ABS warning indicator (all except USA, Canada and Mexico) - also shared with EPB (electronic parking brake) warning |
| 2 | ABS warning indicator (Canada and Mexico only) - not shared with EPB warning |
| 3 | ABS warning indicator (USA only) - not shared with EPB warning |
| 4 | DSC OFF warning indicator |
| 5 | DSC warning indicator |
| 6 | Brake warning indicator (all except USA) |
| 7 | Brake warning indicator (USA only) |
The instrument cluster and message center contains warning indicators and warning messages to display the operating status of the anti-lock control - stability assist functions. The warning indicators and messages provide a visual notification of either a system warning or information indication to the driver. There are four warning indicators on the instrument cluster, which vary dependent on market, and several types of message relating to the anti-lock control - stability assist functions. The DSC OFF message is accompanied by an audible warning.
The following anti-lock control - stability assist warning indicators are installed in the instrument cluster:
- An amber ABS warning indicator.
- A red brake warning indicator.
- An amber DSC warning indicator.
- An amber DSC OFF warning indicator.
