Abs Module

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
G11512105

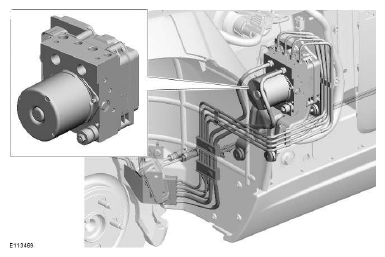

The ABS module is secured to a mounting bracket located in the LH (left-hand) front wheel arch. The module is mounted on the rear face of the HCU, which it uses to control all braking and stability functions by modulating hydraulic pressure to the individual wheel brakes.

Two types of ABS modules are available; one for vehicles with standard speed control, one for vehicles fitted with adaptive speed control.

If an ABS modulator fault is detected, 'ABS FAULT' will be displayed in the instrument cluster message center and the amber warning indicator will illuminate.

CAUTION: The ABS module and the HCU comprise a single unit and must not be separated.
