Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Support the convertible top lid.

    Open the convertible top to the position shown.

    • Depress the switch.
  2. Remove the rear seat backrest.

    For additional information, refer to: Rear Seat Backrest (Removal and Installation).

  3. G11549282

    Release the rear seat backrest trim panel.

    • Remove the 2 clips.
    • Remove the 2 bolts.
    • Position the rear seat backrest trim panel aside.
  4. Remove the rear safety belt trim panel.
    • Release the 2 clips.
    • Remove the 2 nuts.

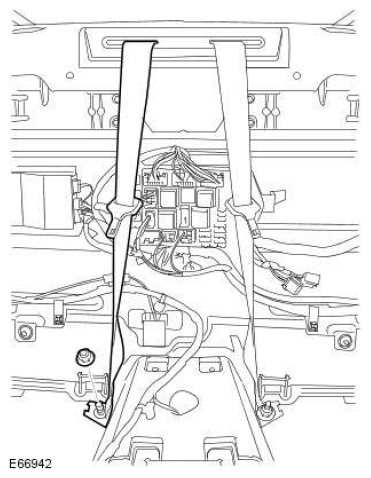

  5. G11549275

    Release the safety belt.

    • Remove and discard the safety belt lower anchor nut.

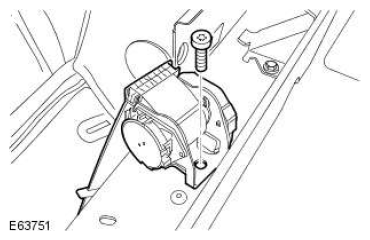

  6. G11549276

    Remove the safety belt assembly.

    • Remove and discard the Torx bolt.
    • Release the safety belt.
