Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make the SRS system safe.

    For additional information, refer to: SUPPLEMENTAL RESTRAINT SYSTEM -- XK/X150 (SRS) Depowering and Repowering (General Procedures).

  2. Remove the rear quarter trim panel.

    For additional information, refer to: REAR QUARTER TRIM PANEL - 2-DOOR (G531690) (Removal and Installation), or REAR QUARTER TRIM PANEL - CONVERTIBLE (G542915) (Removal and Installation).

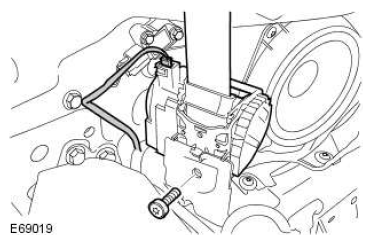

  3. Remove the safety belt retractor assembly.
G11524389
