Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.
  2. Make the SRS system safe.

    For additional information, refer to: SUPPLEMENTAL RESTRAINT SYSTEM -- XK/X150 (SRS) Depowering and Repowering (General Procedures).

  3. Remove the front seat.

    For additional information, refer to: FRONT SEAT REMOVAL AND INSTALLATION .

  4. G11524261

    Release the front seat backrest cover lower tension straps.

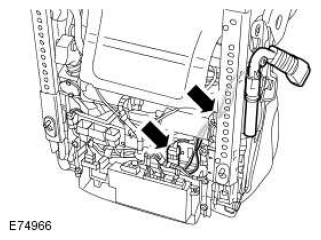

  5. G11549269

    Remove the front seat safety belt pretensioner.

    • Remove and discard the Torx bolt.
    • Release and disconnect the electrical connector.
