Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  1. Refer to: Front Row Seat (Removal and Installation).
  2. CAUTION: Care must be taken not to damage surrounding components.
    NOTE: Note the orientation of the bolts.
    G11549285

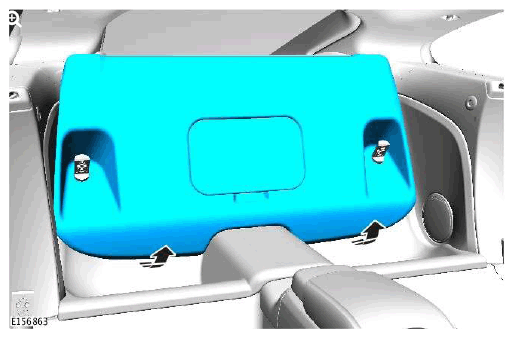

  3. G11549286
  4. See Figure:

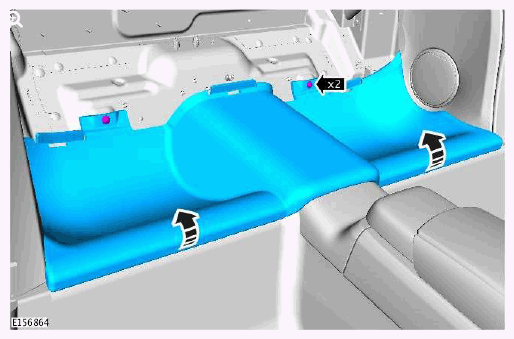

    G11549287
    5. NOTE: Repeat the procedure for the other side.
  5. Refer to: FRONT SAFETY BELT RETRACTOR  (REMOVAL AND INSTALLATION), or REAR SAFETY BELT RETRACTOR - 2-DOOR (G539373) , or REAR SAFETY BELT RETRACTOR - CONVERTIBLE (G563185) .
    6. NOTE: Repeat the procedure for the other side.
  6. See Figure:
    G11549288
    7. NOTE: Repeat the procedure for the other side.
  7. See Figure:
    G11549289
  8. NOTE:
    • Repeat the procedure for the other side.
    • New spacers may be required for installation.
    G11549290
    9. NOTE:
    • Repeat the procedure for the other side.
    • New spacers may be required for installation.
  9. See Figure:

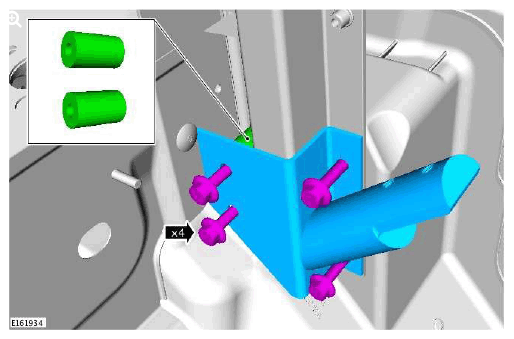

    G11549291
