Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Repeat the procedure for the other side.
  1. See Figure:

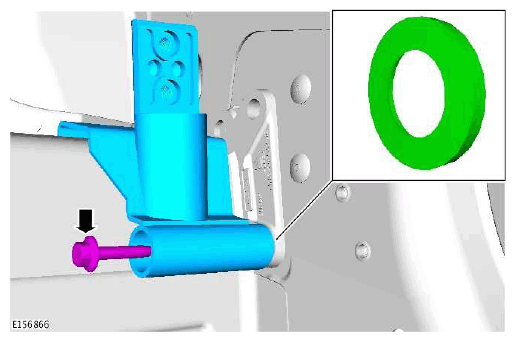

    G11549290

    Torque: 25 Nm

    2. NOTE: Repeat the procedure for the other side.
  2. See Figure:

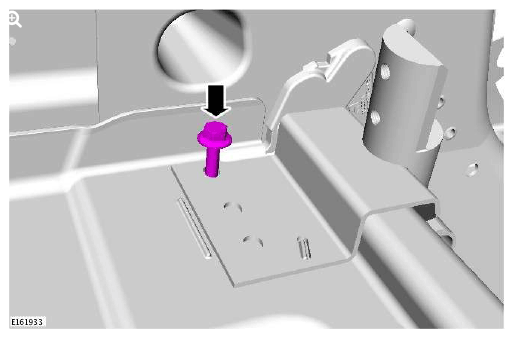

    G11549289

    Torque: 25 Nm

    3. NOTE: Repeat the procedure for the other side.
  3. See Figure:

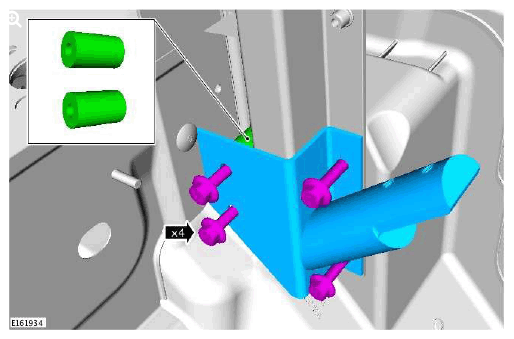

    G11549294

    Torque: 25 Nm

    4. CAUTION: Care must be taken not to damage surrounding components.
  4. See Figure:

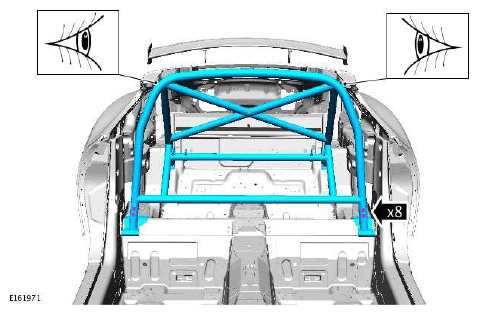

    G11549295

    Install the four point harness mounting frame making sure it is central in the vehicle. Install new spacers if necessary.

  5. Remove the four point harness mounting frame.
    6. NOTE: Repeat the procedure for the other side.
  6. See Figure:

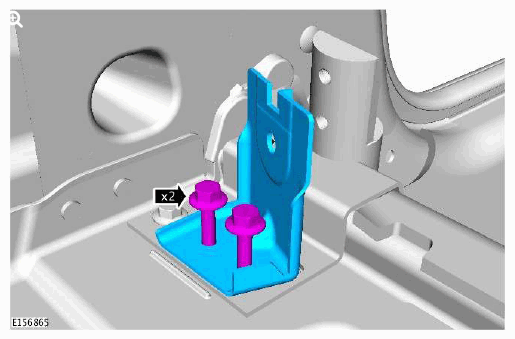

    G11549288

    Torque: 25 Nm

    7. NOTE: Repeat the procedure for the other side.
  7. See Figure:

    Refer to: FRONT SAFETY BELT RETRACTOR  (REMOVAL AND INSTALLATION), or REAR SAFETY BELT RETRACTOR - 2-DOOR (G539373) , or REAR SAFETY BELT RETRACTOR - CONVERTIBLE (G563185)

  8. See Figure:

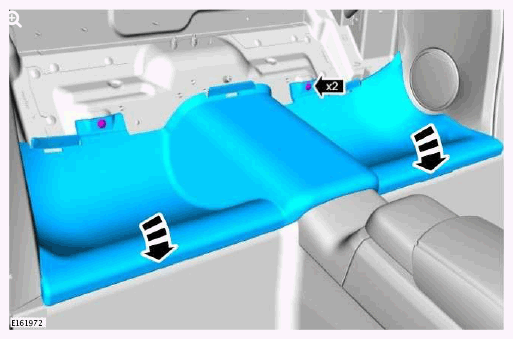

    G11549297
  9. See Figure:

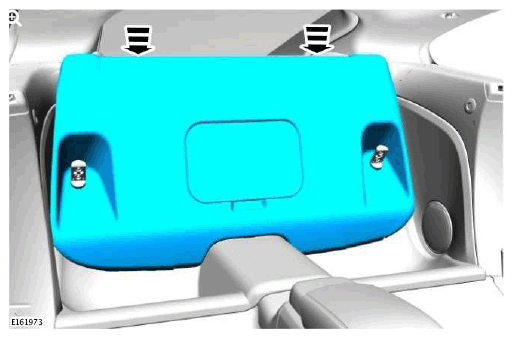

    G11549298
    10. CAUTION: Care must be taken not to damage surrounding components.
    NOTE: Install the bolts in the noted orientation.
  10. See Figure:

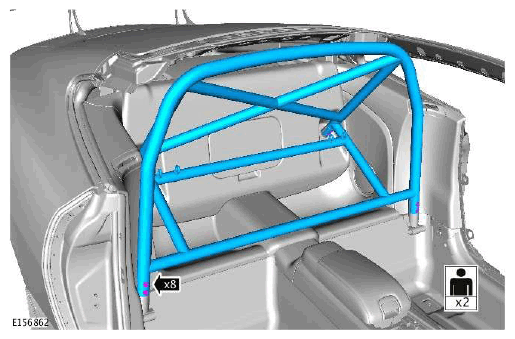

    G11549285

    Torque: 25 Nm
